Reference

How Thinkube Control turns the model catalogue and your GPU nodes into served models behind one endpoint: states, loading, sizing, routing and authentication.

TL;DR

For most work, one sentence is enough: "load Qwen/Qwen3-8B on tkspark". This page says what each step means: the states a model passes through, how the platform sizes it to a node, how a request is routed to the right backend, and how a client authenticates at llm.<your domain>.

The LLM Gateway and AI Models pages of Thinkube Control offer the same operations.

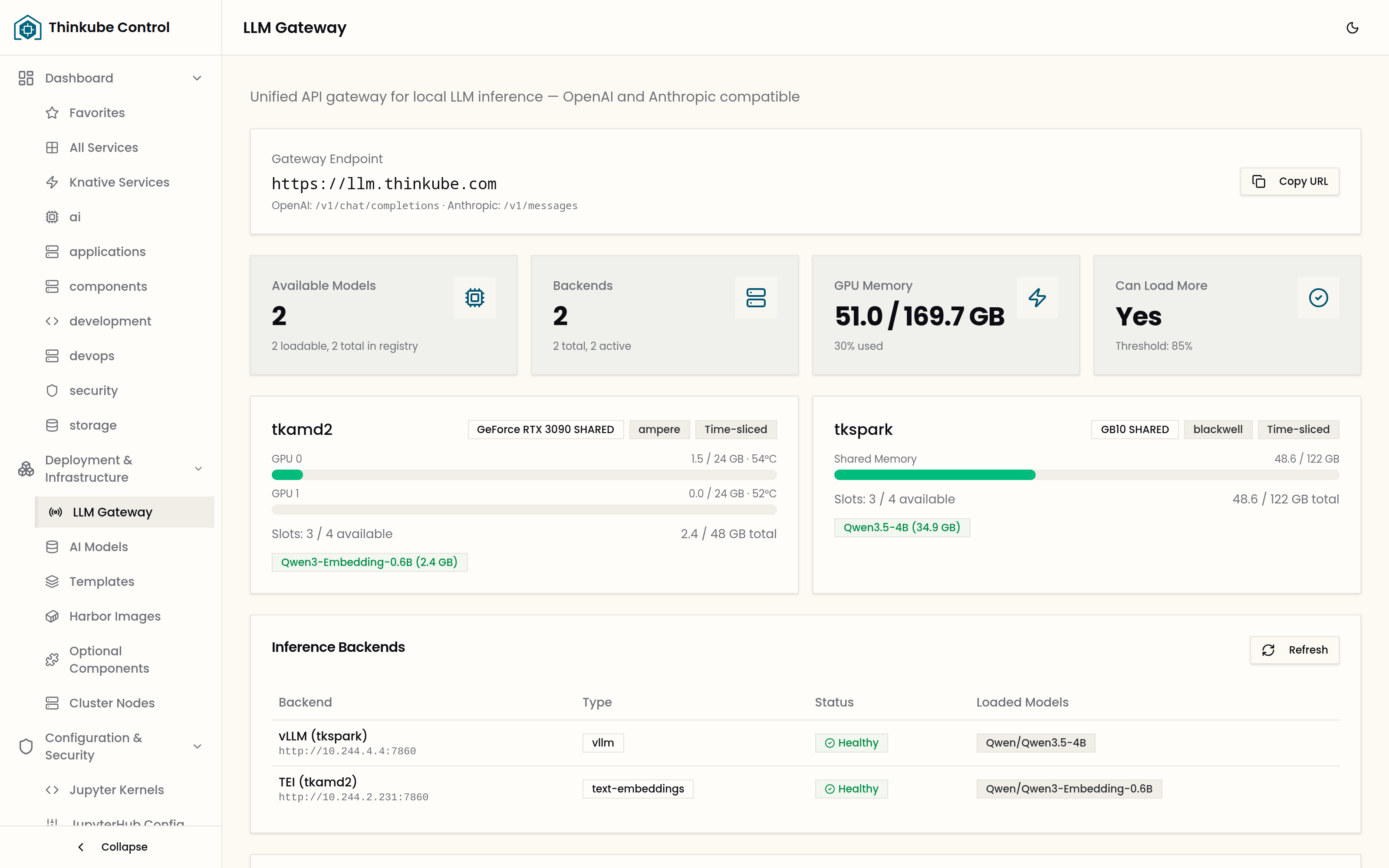

The LLM Gateway page with two backends discovered and two models loaded: Qwen3.5-4B on the DGX Spark through vLLM

The endpoint

Clients call one address, the gateway at https://llm.<your domain>: it checks the caller’s token and sends each request to the backend serving the model. Thinkube Control decides where each model runs and sizes it to its node. The gateway serves:

Route API

POST /v1/chat/completions

OpenAI chat completions

POST /v1/embeddings

OpenAI embeddings

GET /v1/models

OpenAI model list; each alias is listed too, with root naming the model it points to, and every entry has a thinkube object for agent clients

POST /v1/messages

Anthropic Messages

A client written for either API works unchanged with the base URL changed to the gateway.

An alias such as thinkube-fast names a model, and the model it names can change. GET /v1/models lists each alias with root, the model it names now, so an app that keeps results can record which model made them, and can tell when an alias has moved to another model.

Aliases are defined in the model catalog: a model’s aliases list. An alias in your own metadata repository wins over the platform’s. The gateway reads them when the catalog is read, so a changed alias works after refresh_llm_registry, with no deploy.

The thinkube object of each entry in GET /v1/models gives what an agent client needs: state, aliases, capabilities (agent: fit to drive a coding or office agent; vision: it reads images), default_agent, input, context_window (the context its backend serves, when the backend reports it) and max_output (the answer budget agents reserve).

Authentication

Every route takes a token, either as Authorization: Bearer <token> or as an x-api-key header. Two kinds are accepted:

  • a Thinkube Identity access token, verified against the realm’s signing keys;

  • a Thinkube Control API token, which starts with tk_, created under API Tokens and verified against Thinkube Control.

From a notebook or Thinkube IDE, get_openai_client() from the tk_llm package returns an OpenAI client already pointed at the gateway with a token.

Model states

registered

In the catalogue; weights not mirrored yet.

deployable

Weights mirrored into Thinkube Storage and registered in Thinkube Experiments; can be loaded.

loading

A serving pod is starting: image pull, weight load, warm-up.

available

Serving; the gateway routes to it.

unloading

Being removed. The pod is deleted when its last model leaves it.

Backends

The inference engines are optional components you install; Thinkube Control offers only the ones present. Their pods start when a model is loaded.

vLLM

Full-precision text generation, one pod per model.

TensorRT-LLM

NVIDIA’s inference engine, one pod per model; the catalogue entries built for it carry NVFP4 quantisation for Blackwell.

Ollama

Quantised GGUF models; one pod hosts several models.

text-embeddings

Text Embeddings Inference, for embedding models.

Flare

NVIDIA’s inference server for Blackwell GPUs (DGX Spark, RTX PRO 6000), one pod per model. It serves signed runtime packages prepared for one GPU type; a catalogue entry names the package’s hardware revision and the publisher whose key the mirror checks. Models load only on nodes whose GPU it runs on. It answers Anthropic requests itself, so the gateway forwards them to it without translating them.

Each backend declares itself in its component’s thinkube.yaml with spec.llm_backend: its type, its driver and its tier. Thinkube Control reads the installed backend types from the components' service ConfigMaps; get_llm_backend_types lists them. A model’s server_type in the catalogue names the backend types it runs on. A new inference server is added as a template that declares spec.llm_backend, with no change to Thinkube Control. See the thinkube.yaml reference for the fields.

Mirroring

A model must be in the catalogue shown on AI Models before it can be mirrored. Mirroring downloads the weights from Hugging Face once into Thinkube Storage, and registers the model in Thinkube Experiments. Submit it from AI Models or with submit_model_mirror; follow it with get_mirror_status. A gated model needs its licence accepted on Hugging Face by the account whose token the installer stored.

Loading

Load from the Load dialog on the LLM Gateway page or with load_llm_model. The options:

node

The GPU node. Without it, the node with the most AI memory left and a free slot takes the model.

tier

flexible loads through a flexible backend (Ollama) when the model has one: quick, quantised, smaller. performance loads through a performance backend, such as vLLM or TensorRT-LLM. Without a tier, a performance backend is used when the model has one.

backend

A backend type instead of a tier, or a backend by id as get_llm_load_options lists them, such as vllm-tkspark; an id names its node too. Other values are refused, and the error lists the accepted forms.

max_context_length

Caps the context window. The KV cache grows with it, so a serving-sized value such as 8k to 32k uses far less memory than the model’s full window. Without it, Thinkube Control picks the largest of 32k, 16k or 8k that the model supports and the node has memory for. The answer names the node and the context chosen.

keep_alive

Ollama only: how long the model stays loaded after its last request.

num_speculative_tokens

For models with a speculative-decoding configuration, the draft depth for this load.

get_llm_load_options answers before anything is loaded: the compatible backends, the GPU nodes with their free slots and remaining budget, and the estimated memory.

A vLLM, TensorRT-LLM or embeddings deployment serves one model per node. A load of a second model onto a node whose deployment already serves one is refused, naming the model: unload it, or choose another node.

Sizing

Thinkube Control sets GPU and pod memory for you. It measures the checkpoint’s real size and adds the KV cache and a framework overhead. When speculative decoding is configured, it also adds the drafter’s weights. From that it derives a utilisation fraction and a memory request that fit the node’s AI budget. A model that would not fit is refused with the reason. On a unified-memory node such as a DGX Spark, the budget is a fixed ceiling below the physical memory, so the operating system and the platform keep room.

Speculative decoding

Two methods, chosen per model in the catalogue’s speculative_config:

  • MTP, a multi-token-prediction head inside the model;

  • DFlash, a separate small drafter model. The catalogue names the drafter; at load time Thinkube Control resolves it to its mirrored weights and loads it beside the target. A drafter is mirrored and sized like any model but is never offered for loading on its own.

num_speculative_tokens is the draft depth. A larger value can be faster when drafts are accepted and costs memory that would otherwise be KV cache.

Errors from the endpoint

404

The model is not in the catalogue.

503

The model exists and cannot be reached right now, for example while it is still loading; retry.
